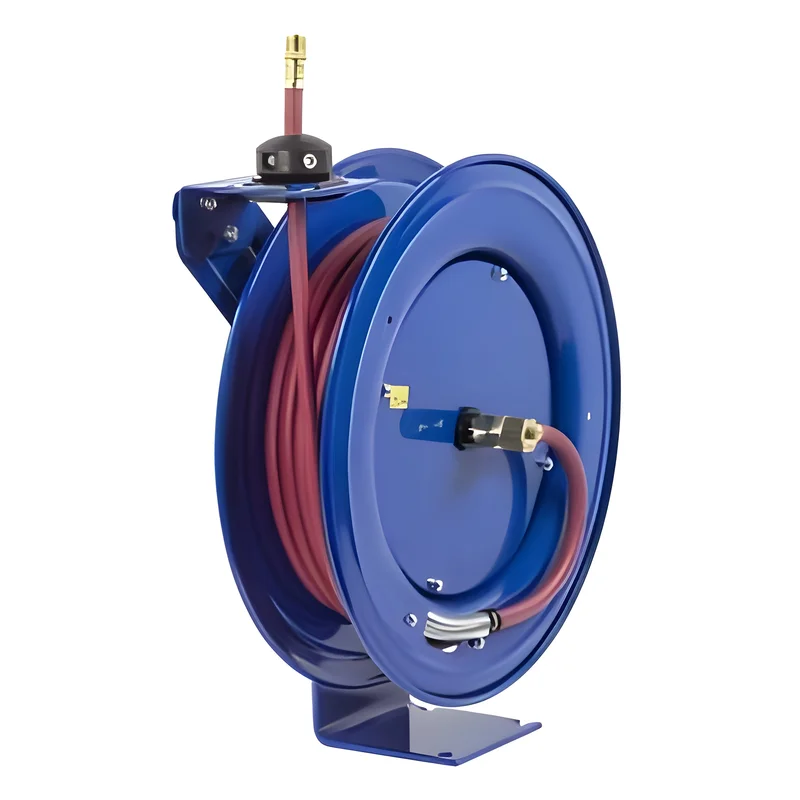

Coxreels SH Series “Super Hub™” Low Pressure Spring Driven Hose Reels – SH-N-160
SH Series “Super Hub™” Low-Pressure Spring Driven Hose Reels
COXREELS® SH Series “Super Hub™” spring driven hose reels, like the P Series, have a long history of dependable performance. The larger chassis and frame accommodate longer lengths and larger diameters of hose. Coxreels’ original Super Hub™ dual axle support system increases the stability during operation, reduces vibration and strengthens the structural integrity of the reel.
- Professional grade heavy duty steel construction
- Rolled edges & ribbed discs provide strength & safety
- Leading 2-year manufacturer’s limited warranty
- Made in the U.S.A. – Sold & Supported Worldwide
Features
- SWIVEL – Machined from solid brass 90° full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- CARTRIDGE MOTOR – Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
- CNC SPUN DISCS – Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- 1/4″ STEEL BASE – Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability. Exclusive Super Hub™dual axle support system.
- MULTI-POSITION GUIDE ARM – Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
- OTHER FEATURES INCLUDE – long lasting, chip resistant and rust inhibiting CPC powder coat finish,adjustable solid rubber hose stop, and sturdy permanently lubricated precision bearings.
Specifications
| MODEL | I.D | O.D | LENGTH | HOSE | MAX PSI | SHIP WEIGHT (LBS) | OVERALL DIMENSIONS (W) (H) (L) | MOUNTING PATTERN (M) (N) | BASE (X) (Y) |
|---|---|---|---|---|---|---|---|---|---|
| SH-N-160 | 1/4″ | 1/2″ | 60′ | Yes | 300 | 50 | 7.63″(W) 21.25″(H) 19.5″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| SH-N-3100 | 3/8″ | 5/8″ | 100′ | Yes | 300 | 71 | 8.25″(W) 21.25″(H) 24″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| SH-N-350 | 3/8″ | 5/8″ | 50′ | Yes | 300 | 50 | 8.25″(W) 21.25″(H) 19.5″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| SH-N-360 | 3/8″ | 5/8″ | 60′ | Yes | 300 | 53 | 8.25″(W) 21.25″(H) 19.5″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| SH-N-375 | 3/8″ | 5/8″ | 75′ | Yes | 300 | 68 | 8.25″(W) 21.25″(H) 24″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| SH-N-4100 | 1/2″ | 3/4″ | 100′ | Yes | 300 | 81 | 8.75″(W) 25.5″(H) 24″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| SH-N-435 | 1/2″ | 3/4″ | 35′ | Yes | 300 | 49 | 8.25″(W) 21.25″(H) 19.5″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| SH-N-440 | 1/2″ | 3/4″ | 40′ | Yes | 300 | 52 | 8.25″(W) 21.25″(H) 19.5″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| SH-N-450 | 1/2″ | 3/4″ | 50′ | Yes | 300 | 54 | 8.25″(W) 21.25″(H) 19.5″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| SH-N-475 | 1/2″ | 3/4″ | 75′ | Yes | 300 | 68 | 8.75″(W) 25.5″(H) 24″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| SH-N-525 | 3/4″ | 1 1/16″ | 25′ | Yes | 300 | 52 | 9.38″(W) 25.5″(H) 19.5″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| SH-N-535 | 3/4″ | 1 1/16″ | 35′ | Yes | 300 | 57 | 9.38″(W) 25.5″(H) 19.5″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| SH-N-550 | 3/4″ | 1 1/16″ | 50′ | Yes | 300 | 69 | 9.88″(W) 25.5″(H) 24″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| SHL-N-160 | 1/4″ | 1/2″ | 60′ | No | 300 | 50 | 7.63″(W) 21.25″(H) 19.5″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| SHL-N-3100 | 3/8″ | 5/8″ | 100′ | No | 300 | 60 | 8.25″(W) 21.25″(H) 24″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| SHL-N-350 | 3/8″ | 5/8″ | 50′ | No | 300 | 44 | 8.25″(W) 21.25″(H) 19.5″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| SHL-N-360 | 3/8″ | 5/8″ | 60′ | No | 300 | 46 | 8.25″(W) 21.25″(H) 19.5″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| SHL-N-375 | 3/8″ | 5/8″ | 75′ | No | 300 | 59 | 8.25″(W) 21.25″(H) 24″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| SHL-N-4100 | 1/2″ | 3/4″ | 100′ | No | 300 | 66 | 8.75″(W) 25.5″(H) 24″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| SHL-N-435 | 1/2″ | 3/4″ | 35′ | No | 300 | 43 | 8.25″(W) 21.25″(H) 19.5″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| SHL-N-440 | 1/2″ | 3/4″ | 40′ | No | 300 | 45 | 8.25″(W) 21.25″(H) 19.5″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| SHL-N-450 | 1/2″ | 3/4″ | 50′ | No | 300 | 46 | 8.25″(W) 21.25″(H) 19.5″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| SHL-N-475 | 1/2″ | 3/4″ | 75′ | No | 300 | 57 | 8.75″(W) 25.5″(H) 24″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| SHL-N-525 | 3/4″ | 1 1/16″ | 25′ | No | 300 | 57 | 9.38″(W) 25.5″(H) 19.5″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| SHL-N-535 | 3/4″ | 1 1/16″ | 35′ | No | 300 | 47 | 9.38″(W) 25.5″(H) 19.5″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| SHL-N-550 | 3/4″ | 1 1/16″ | 50′ | No | 300 | 56 | 9.88″(W) 25.5″(H) 24″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
What Our Experts Think
- Super Hub™ Technology: Features an advanced hub design for smooth hose retraction and enhanced durability, perfect for high-use environments.
- Low-Pressure Capability: Ideal for air, water, and light fluid transfer, supporting various industries such as automotive, agriculture, and manufacturing.
- Spring-Driven Retraction: Provides effortless automatic rewind, reducing manual effort and improving operational efficiency.
- Heavy-Duty Construction: Built to last in demanding conditions, ensuring long-term performance and reliability.
- Corrosion-Resistant Finish: Resists rust and wear, making it suitable for both indoor and outdoor applications.
- Compact Design: Space-efficient, keeping hoses organized and reducing clutter in the workspace.
Q&A
Q: What is the Coxreels SH Series “Super Hub™” Low Pressure Spring Driven Hose Reel – SH-N-160?
A: A low-pressure, spring-driven hose reel featuring the Super Hub™ system for smooth, efficient hose management and retraction.
Q: What is the hose capacity?
A: This reel holds up to 160 feet of low-pressure hose, making it perfect for various light industrial and mobile applications.
Q: What is the Super Hub™ technology?
A: The Super Hub™ system reduces friction during hose operation, providing smoother retraction and extending the reel’s lifespan.
Q: How does the spring-driven mechanism work?
A: The reel uses a spring-driven system that automatically retracts the hose, making hose management quick and hassle-free.
Q: What materials is the reel made from?
A: Constructed with durable, corrosion-resistant materials to ensure longevity and reliable performance in demanding environments.
Q: Where can this reel be used?
A: Ideal for agricultural, automotive, and light industrial applications that require efficient low-pressure hose management.
Maintenance Tips
- Model: SH-N-160
- Hose Capacity: Holds up to 150 feet of 1/2” low-pressure hose
- Pressure Rating: Rated for low-pressure applications up to 300 PSI
- Construction: Heavy-duty steel frame with corrosion-resistant powder-coated finish for long-lasting durability
- Drive Mechanism: Spring-driven automatic rewind for smooth and effortless hose retraction
- Swivel Inlet: Full-flow brass swivel ensures efficient and unrestricted fluid transfer
- Roller Design: Multi-position guide arm with reinforced rollers for smooth and consistent hose payout
- Mounting Type: Wall, floor, or ceiling mount for versatile installation options
- Applications: Ideal for low-pressure fluid transfer in industrial, automotive, and maintenance environments
- Temperature Range: Operates effectively across a wide temperature range
- Weight: Varies based on hose configuration
