Description

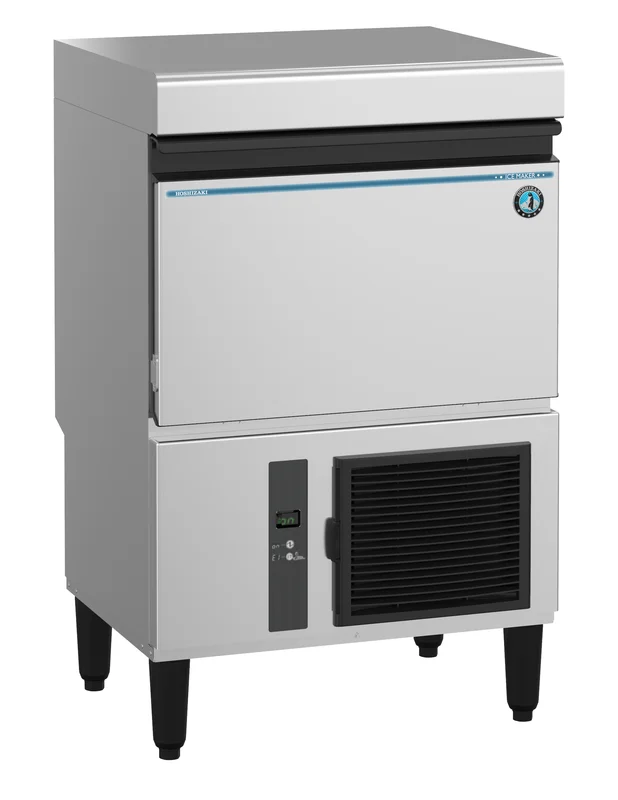

Hoshizaki 25″ Wide Air-Cooled Sphere Cube Ice Maker w/ Built-In Storage Bin – IM-50BAA-Q
The IM-50BAA-Q is capable of producing approximately 50 lbs of individual sphere cubes. The sphere cube shape melts very slowly, chilling beverages with very minimal dilution. This Air-cooled, Built in Storage Bin icemaker features Up to 36 lbs of built-in storage capacity (ft3)*. The IM-50BAA-Q is a Single phase, 115v/60/1, 6.5 ft. cord with NEMA 5-15 plug and uses R-134a refrigerant (7.1 oz. / 201 g). Nozzle injects water into the sphere ice forming chamber of the evaporator, making 15 spheres at a time. Please consult the Specification Sheet for additional details.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice.
Features
- Dimensions: 24-3/4″ W x 20-3/4″ D x 39- 1/2 ” H
- Up to 50 lbs or 500 spheres of ice produced per 24 hours
- Up to 36 lbs of built-in storage capacity (ft3)
- Produces individual sphere cubes
- Durable stainless steel exterior
- Front in, back out airflow
- Ice scoop included
- Foam injected polyurethane for insulation (HFC free)
- Nozzle injects water into the sphere ice forming chamber of the evaporator, making 15 spheres at a time
- R-134a refrigerant (7.1 oz. / 201 g)
- Heat Rejection:1500 BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 7 – 113psig
- Voltage range: 104 – 127V
- 5 amps (15 Amp Max fuse)
- 15.7 kwh/100 lbs.@ 90/70
- Single phase, 115v/60/1, 6.5 ft. cord with NEMA 5-15 plug
- Clean ice and easy maintenance lead to longer unit life span
- Three Years: Parts & Labor warranty on entire machine.
- Five Years: Parts warranty on Compressor, air-cooled condenser coil.
What Our Experts Think
-
Compact air-cooled sphere cube ice maker designed for premium beverage service and small commercial environments.
-
Produces up to 50 lbs. of perfectly shaped spherical ice per day, with a 22-lb. built-in storage bin.
-
The sphere-shaped ice cubes melt slowly, preserving drink quality and presentation for longer periods.
-
Stainless steel exterior offers durability, corrosion resistance, and a sleek, professional appearance.
-
Ideal for craft cocktail bars, luxury lounges, and high-end restaurants seeking distinctive ice aesthetics and consistency.
Q&A
-
Q: How much ice does it produce daily?
A: Generates up to 50 lbs. of crystal-clear sphere cubes per 24 hours. -
Q: What is the bin capacity?
A: The integrated storage bin holds up to 22 lbs. of ice. -
Q: What makes sphere cubes desirable?
A: They melt slowly and cool evenly, maintaining the flavor integrity of premium beverages. -
Q: Does it require an external bin?
A: No, this model includes a built-in storage bin for compact, all-in-one operation.
Maintenance Tips
-
Clean and sanitize the ice-making system regularly in accordance with Hoshizaki’s service guidelines.
-
Inspect and replace water filters periodically to ensure ice purity and taste consistency.
-
Vacuum or brush condenser coils monthly to maintain cooling efficiency.
-
Descale the machine as needed to prevent mineral accumulation on critical components.
-
Empty and wipe the bin daily to maintain hygiene and prevent microbial growth.
