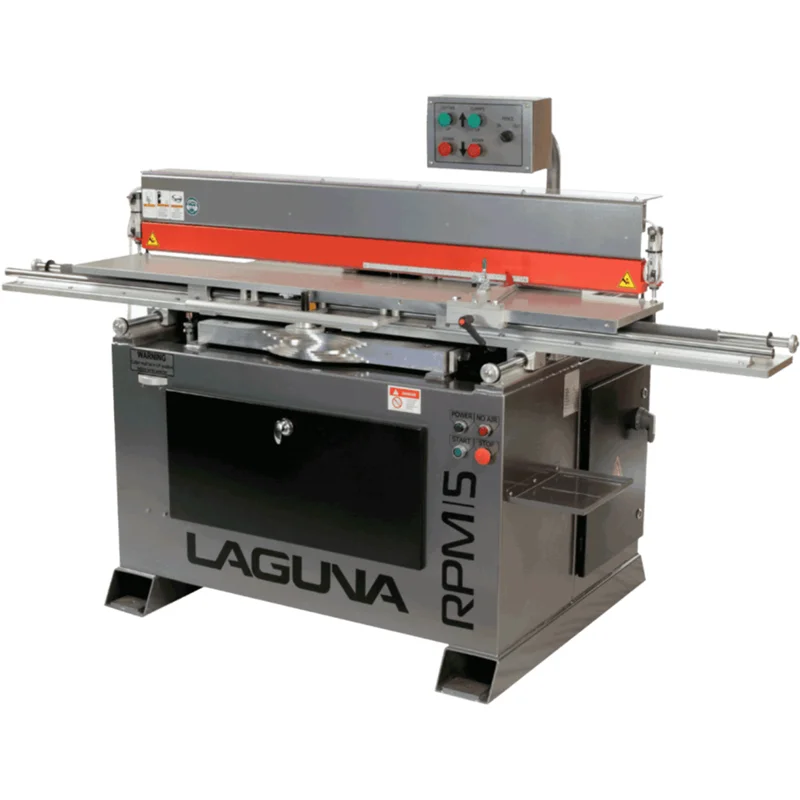

Laguna Tools Industrial Shaper, Raised Panel Master 5 – MDM2050-0148
Laguna is proud to introduce our latest Industrial Series machine, the Raised Panel Master 5. This machine is designed to allow a single operator to produce a complete cabinet door in less than 2 minutes. The single-piece welded steel frame provides the ultimate support for chatter-free work.
The heart of the machine is a shaper spindle which holds all five cutters needed to produce a door. The spindle is powered by a 10 HP motor for smooth cuts and is quickly positioned from the front of the machine with a dial. The turret system insures complete accuracy without test cuts and the pneumatically controlled spindle height is quickly set. The 2 axis sliding table rides on linear bearings in all directions and includes a pneumatic hold-down clamp for quick setup. The pneumatic EZ fence quickly positions stock for the next cut. A large diameter tracer bearing provides perfect control for straight and curved template following.
Features
- Motor: 10hp 220v 3-phase w/ VFD
- Speed range: 6000 to 8000 RPM
- Spindle: 1-1/4″ Diameter x 7-1/4″ Height
- Cutter capacity: up to 7″ Diameter
Specifications
- Compressed Air Requirement: 90 PSI 1 CFM
- Dust Port: 5″
- Maximum Arch Height: 2 Standard
- Maximum Material Thickness: 1-¼″
- Maximum Arch Width: 24″
- Weight: 1500 lbs
Manual
- Raised Panel Master 5 Manual
Video
*]:pointer-events-auto [content-visibility:auto] supports-[content-visibility:auto]:[contain-intrinsic-size:auto_100lvh] scroll-mt-[calc(var(–header-height)+min(200px,max(70px,20svh)))]“ dir=“auto“ data-turn-id=“request-690231e7-faf4-8323-ae09-b4258857e245-8″ data-testid=“conversation-turn-22″ data-scroll-anchor=“true“ data-turn=“assistant“>
What Our Experts Think
-
High-Performance Machine: The Laguna Tools Industrial Shaper, Raised Panel Master 5 – MDM2050-0148 is built for precision cabinet door and panel production.
-
Powerful Motor: Features a 10 HP, 220V, 3-phase motor with variable speed control for smooth shaping.
-
Fast & Efficient: The five-cutter turret spindle allows quick profile changes without resetting.
-
Stable & Accurate: Heavy steel frame and linear bearings ensure vibration-free and precise operation.
-
Professional Results: Ideal for production shops needing consistent, repeatable raised panel shaping.
Q&A
Q: What motor power does it have?
A: A 10 HP, 220V, 3-phase motor for industrial-grade performance.
Q: What spindle size does it use?
A: Uses a 1-1/4″ diameter spindle for heavy-duty cutters.
Q: What is the spindle speed range?
A: Variable speed between 6,000 and 8,000 RPM.
Q: Does it support quick cutter changes?
A: Yes, the turret-style spindle allows fast cutter rotation without recalibration.
Maintenance Tips
-
Clean after each use: Remove dust and chips from the spindle and table.
-
Lubricate slides and bearings: Apply light oil to moving parts for smooth performance.
-
Check air pressure: Maintain 90 PSI for the pneumatic hold-down system.
-
Inspect cutter alignment: Ensure all turret-mounted cutters are properly aligned.
-
Maintain dust collection: Keep the 5″ dust port and hoses clear for efficient airflow.
